Geomar Autopilot Survey Boat

An Autopilot Survey Boat Suported by High Precision Positioning System for Easy and Fast Deployment.

Services1

Features

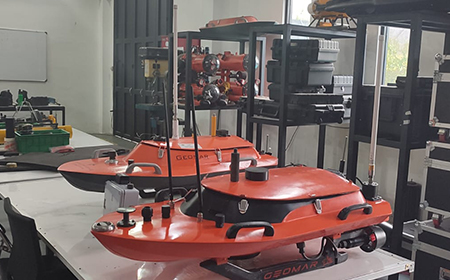

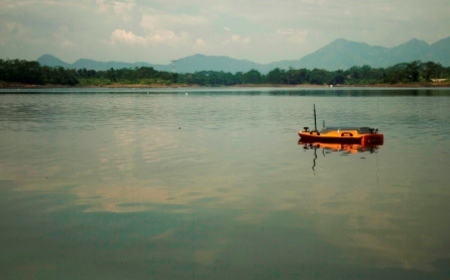

Geomar Survey Boat is a survey boat that can be programmed to move autonomously based on a set of way points. This feature significantly can reduce the cost of operation and ideal for hazardous survey location. Geomar is also lighweight so that it can be handled and deployed easily.

Geomar Survey Boat is designed to meet the vast needs in various fields:

  • Lake Bottom Survey
  • River Bottom Survey
  • Water Volume Survey
  • Mud Volume Survey
  • Monitoring and Maping

Developed in 2014, Geomar is designed to survey at over 1000 m (3500 ft) range with surface velocity up to 4 knots. For a turnkey survey-grade system, Geomar is offered with the Seafloor Systems Echologger ECS 400, GPS and reciever RTK positioning system. The Geomar echosounder and GPS are integrated with a radio modem data transmission system allowing the operator to view the boat track in real time on the shore ground station.

PHYSICAL

Dimension

Length : 1200 mm
Wide : 600 mm
Height : 300 mm

Weight in Air : 22 kg

Hull material : UV Resistant Fiberglas Composite

Payload : 11 lbs

Motor : Dual brushless 1 HP Outdrive

PERFORMANCE

Survey range : >1000 m

Speed

Typical Survey : 2 m/s (4 kts)
Top Speed : 10 m/s (5 kts)

Battrey Endurance

Survey Speed : 4 hours
Top Speed : 2 hours

Power : 16 Volt Lithium Polymer Battery

REMOTE

- Navigation Remote Control Unit : Futaba T10CAG
- Navigation Remote Control Unit Frequency : 2.4 GHz FASST
- Navigation Remote Control Unit Range : >1000 m
- Data Telematry Range-900 MHz RF : >1000 m

SENSOR

3 axis Gyro
Seafloor system Echologger ECS 400

SOFTWARE

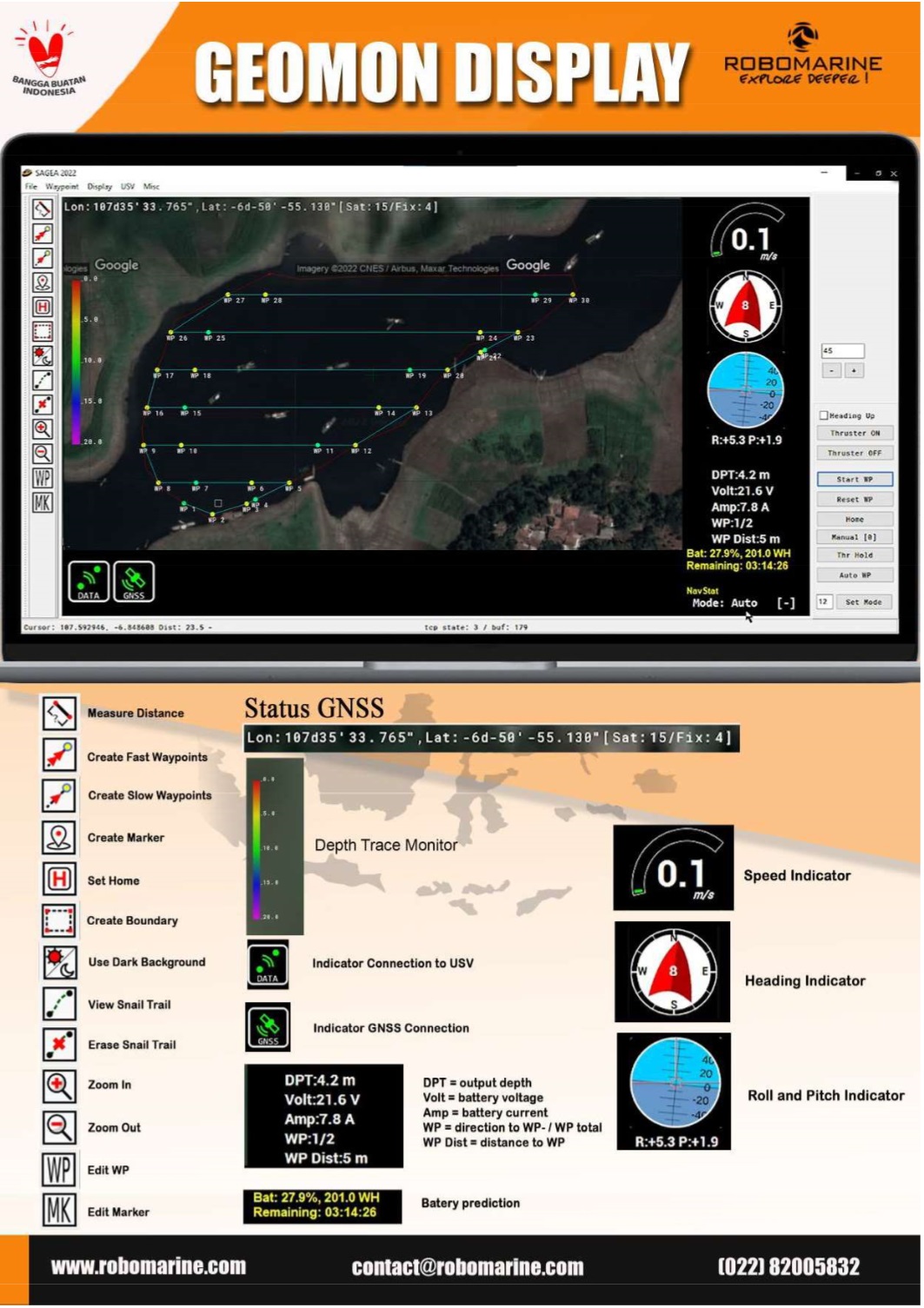

- PC: GM-Mon
- Embedded : GM-Nav
